Name: 12V 206Ah Lithium Iron Phosphate (LiFePO4) Prismatic Cell, Ganfeng Lithium, (4 Pcs)
SKU: 316296

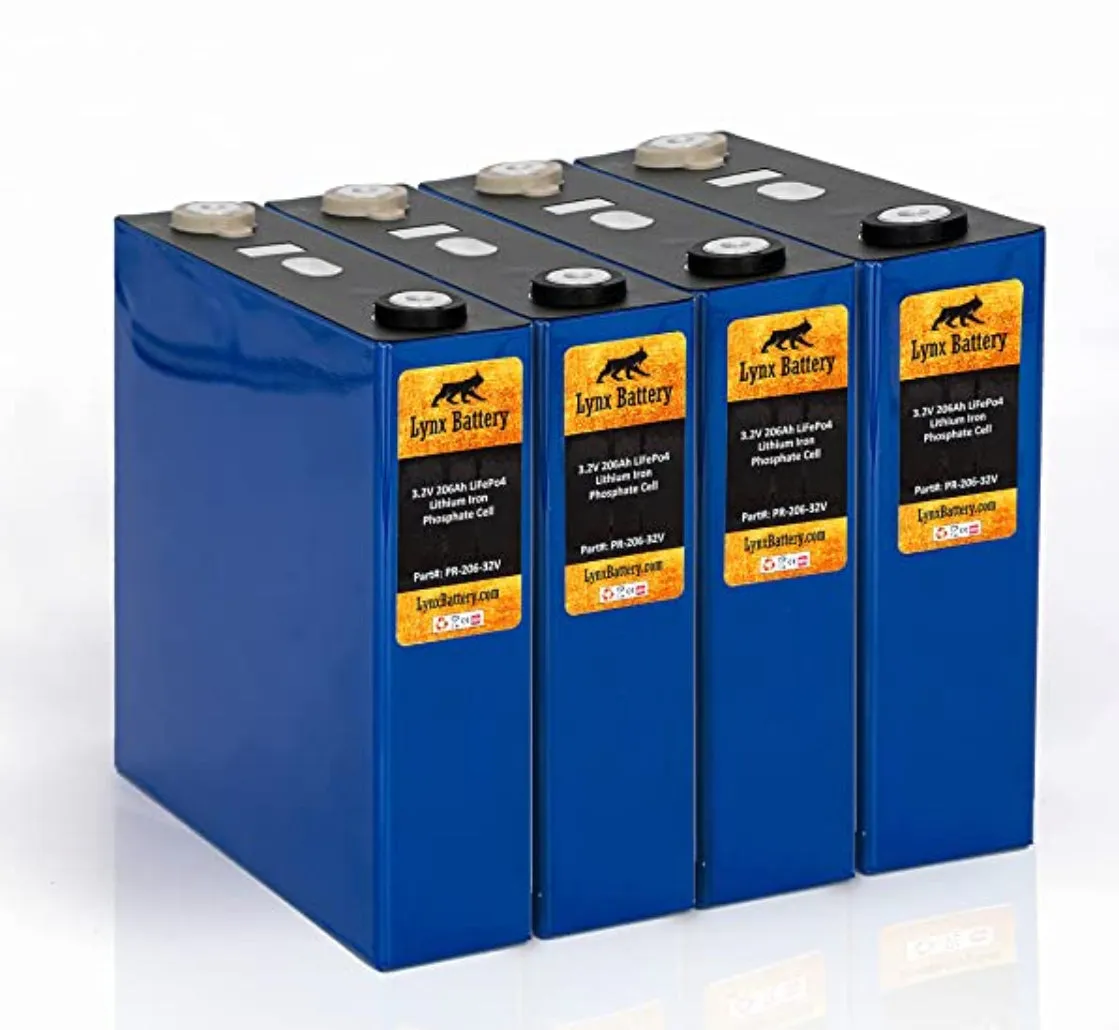

Includes 4 - 3.2V 206Ah Prismatic Cells with 3 Bus Bars and 8 Lug Nuts.

Built with quality materials and easy to use Lynx Battery Rechargeable Prismatic Cell can be mounted in any orientation, even upside down, and weighing only 25 lbs, It is half the weight of their lead-acid/ AGM battery counterparts.

Battery Specifications:

Nominal Voltage: 12V

Capacity: 206Ah

Weight: 36.8 lbs, (16.7 Kg)

Size: 8.5”x6.9”x7.9” (lxwxh)

Cycle Life: 5000/3 years

Prismatic Cell Specifications:

Nominal Voltage 3.2V

Capacity 206Ah

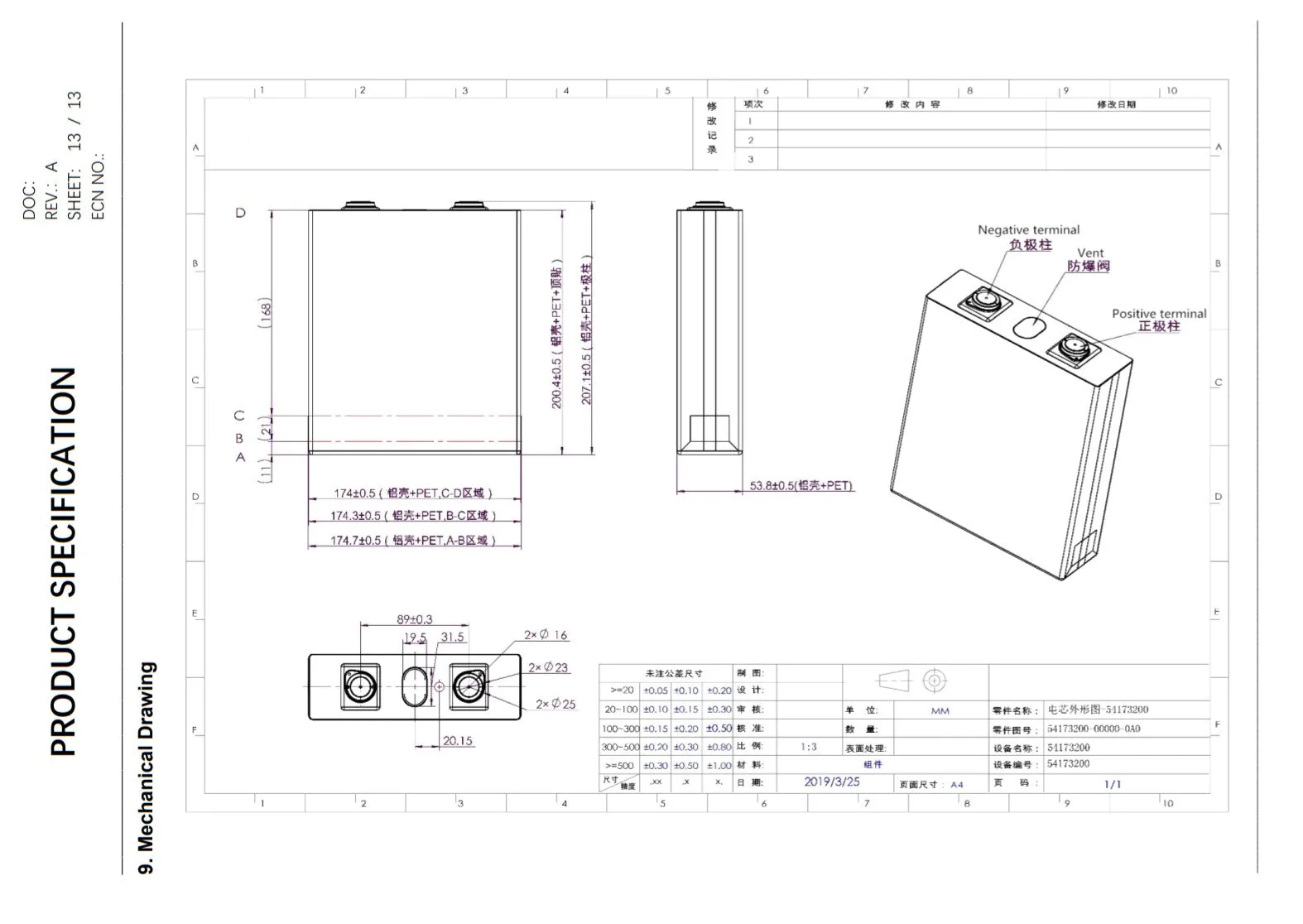

Core size 6.9" x 2.12" x 7.9" (lxwxh)

Cell Weight 9.2lbs

Charging Current; Standard Charge 0.5C, Max Charge 1.5C

Discharging Rate; Continuous 1C, Max 2C

Cut-off Voltage; Charging 3.65V Discharging 2.5V

Recommended SOC Window SOC 10%~90%

Internal Resistance 0.1~0.5mΩ Fresh Cell, 30% SOC

Working Temperature; Charging 0~45°C Discharging -20℃~55℃,

Storage Temperature; ≤1 month: -10–45℃, ≤3 months: 0–30℃, ≤6 months: 20±5℃

Additional Applications:

Lithium-Ion 12V 206Ah prismatic deep-cycle cells are ideal and preferred for supporting handling equipment, emergency lighting systems, solar & wind power, off-grid applications, and uninterrupted standby power supply systems.
